Scalable in java 翻译

2023-08-16 2304 words 11 minutes

Contents

Scalable network services 可扩展的网络服务
Event-driven processing 事件驱动处理
Reactor pattern Reactor 模式
- Basic version 基本版本
- Multithreaded versions 多线程版本
- Other variants 其他变体
Walkthrough of java.nio nonblocking IO APIs 预编排java.nio nonblocking IO APIs

Network Services 网络服务

Web services, Distributed Objects, etc 网络服务,分布式对象，等等。

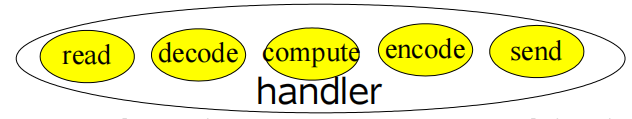

Most have same basic structure: 大多数都有以下的基本结构
- Read request 读请求
- Decode request 解码请求
- Process service 处理服务
- Encode reply 编码响应
- Send reply 发送响应
But differ in nature and cost of each step 当然在实际应用中每一步的运行效率都是不同的，例如其中可能涉及到xml解析、文件传输、web页面的加载、计算服务等不同功能
- XML parsing, File transfer, Web page generation, computational services, …

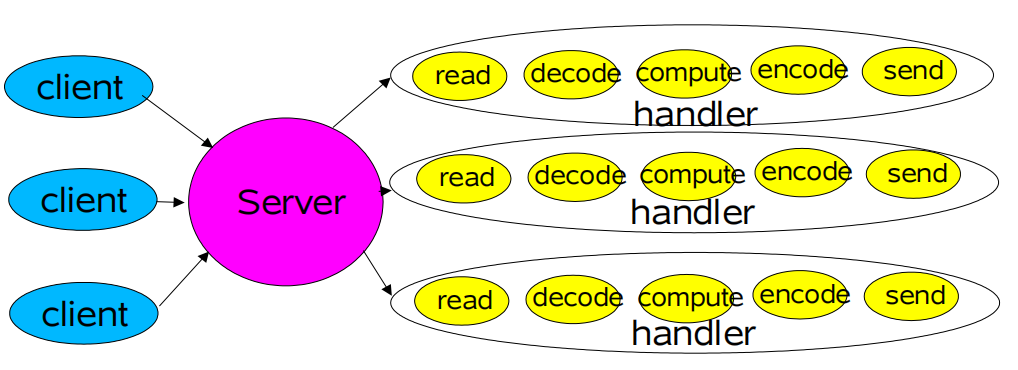

Classic Service Designs 传统的服务设计

Each handler may be started in its own thread 在一般的网络服务当中都会为每一个连接的处理开启一个新的线程，我们可以看下大致的示意图：


public class Test {

    private static Integer PORT = 8080;

    public static void main(String[] args) {
        Server server = new Server();
        server.run();
    }

    public static class Server implements Runnable {
        @Override
        public void run() {
            try {
                ServerSocket ss = new ServerSocket(PORT);
                while (!Thread.interrupted()) {
                    new Thread(new Handler(ss.accept())).start();
                }
            } catch (IOException ex) {
            }
        }

    }

    public static class Handler implements Runnable {

        final Socket socket;
        public Integer MAX_INPUT = 1024;

        Handler(Socket s) {
            socket = s;
        }
        @Override
        public void run() {
            try {
                byte[] input = new byte[MAX_INPUT];
                socket.getInputStream().read(input);
                byte[] output = process(input);
                socket.getOutputStream().write(output);
            } catch (IOException ex) {
                /* ... */
            }
        }

        private byte[] process(byte[] cmd) {
            System.out.println(cmd);
            return cmd;
        }
    }
}

Classic ServerSocket Loop 构建高性能可伸缩的IO服务

Scalability Goals 在构建高性能可伸缩的IO服务过程中，我们希望达到以下的目标
- Graceful degradation under increasing load (more clients) 在海量的负载连接情况下优雅降级
- Continuous improvement with increasing resources (CPU, memory, disk, bandwidth) 能随着硬件资源的增加，性能持续改进
- Also meet availability and performance goals 还要满足可用性和性能目标
  - Short latencies 低延时
  - Meeting peak demand 高吞吐量
  - Tunable quality of service 可调节服务质量

Divide and Conquer 分治法

Divide-and-conquer is usually the best approach for achieving any scalability goal 分而治之通常是实现任何可伸缩性目标的最佳方法
- Divide processing into small tasks 将处理过程分成小任务
  - Each task performs an action without blocking 每个任务执行一个操作而不阻塞
- Execute each task when it is enabled 在启用时执行每个任务
  - Here, an IO event usually serves as trigger 在这里IO通常用作触发器
- Basic mechanisms supported in java.nio java.nio包就很好的实现了上述的机制
  - Non-blocking reads and writes 非阻塞读和写
  - Dispatch tasks associated with sensed IO events 调度与感知到的IO事件相关的任务
- Endless variation possible 无限变化的可能
  - A family of event-driven designs 所以结合一系列基于事件驱动模式的设计，给高性能IO服务的架构与设计带来丰富的可扩展性

Event-driven Designs 基于事件驱动模式的设计

Usually more efficient than alternatives 基于事件驱动的架构设计通常比其他架构模型更加有效
- Fewer resources 更节约资源
  - Don’t usually need a thread per client 通常不需要针对每个客户端去启动一个线程
- Less overhead 减少线程开销
  - Less context switching, often less locking 更少的上下文切换和更少的互斥锁
- But dispatching can be slower 但是调度可能会更慢
  - Must manually bind actions to events 必须手动将动作绑定到事件
Usually harder to program 编码的难度更高
- Must break up into simple non-blocking actions 相关功能必须分解成简单的非阻塞操作
  - Similar to GUI event-driven actions 类似与GUI的事件驱动机制
  - Cannot eliminate all blocking: GC, page faults, etc 当然也不可能把所有阻塞都消除掉，特别是GC， page faults(内存缺页中断)等
- Must keep track of logical state of service 由于是基于事件驱动的，所以需要跟踪服务的相关状态（因为你需要知道什么时候事件会发生）

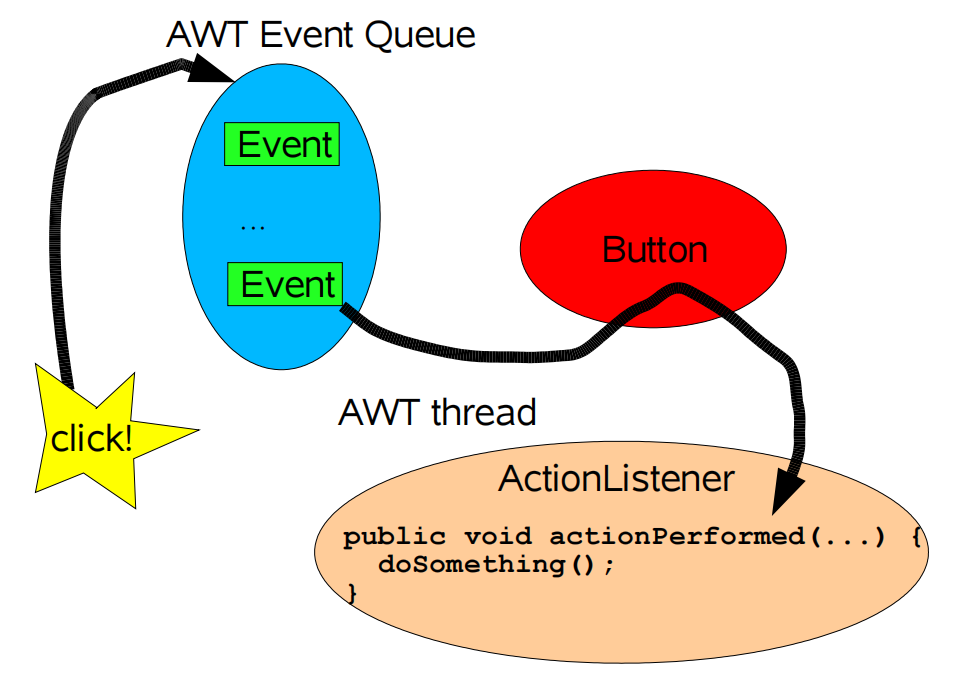

Background: Events in AWT 背景：AWT中事件驱动设计

Event-driven IO uses similar ideas but in different designs 下图是AWT中事件驱动设计的一个简单示意图，可以看到，在不同的架构设计中的基于事件驱动的IO操作使用的基本思路是一致的；

Reactor Pattern Reactor模式

Reactor responds to IO events by dispatching the appropriate handler Reactor模式中会通过分配适当的handler(处理程序)来响应IO事件
- Similar to AWT thread 类似与AWT 事件处理线程
Handlers perform non-blocking actions 每个handler执行非阻塞的操作
- Similar to AWT ActionListeners 类似于AWT ActionListeners 事件监听
Manage by binding handlers to events 通过将handler绑定到事件进行管理
- Similar to AWT addActionListener 类似与AWT addActionListener 添加事件监听
See Schmidt et al, Pattern-Oriented Software Architecture, Volume 2 (POSA2) 参见Schmidt et al，面向模式的软件体系结构，第2卷(POSA2)
- Also Richard Stevens’s networking books, Matt Welsh’s SEDA framework, etc 还有Richard Stevens的网络书籍，Matt Welsh的SEDA框架，等等

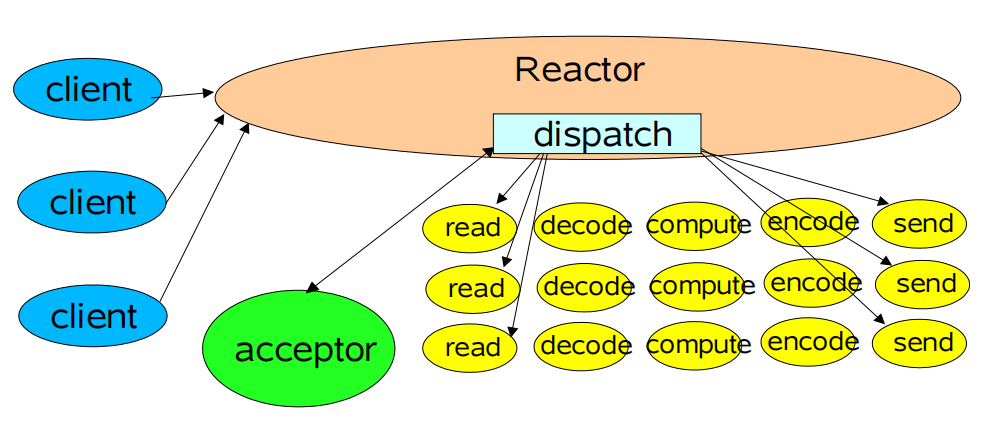

Basic Reactor Design 单线程模式

java.nio Support java.nio的一些概念
Channels
- Connections to files, sockets etc that support non-blocking reads 支持非阻塞读写的socket连接

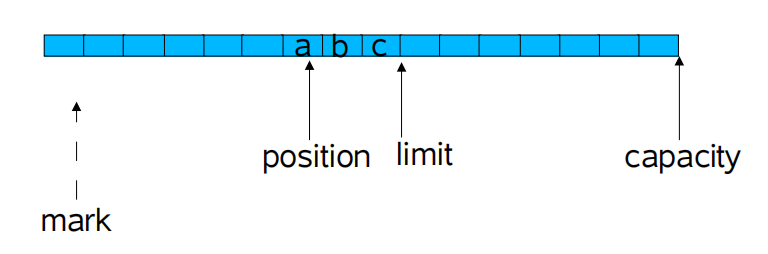

Buffers
- Array-like objects that can be directly read or written by Channels 用于被Channels读写的字节数组对象
Selectors
- Tell which of a set of Channels have IO events 用于判断channle发生IO事件的选择器
SelectionKeys
- Maintain IO event status and bindings 负责IO事件的状态与绑定

接下来我们一步步看下基于Reactor模式的服务端设计代码示例

Reactor 1: Setup 第一步 Rector线程的初始化
Reactor 2: Dispatch Loop 第二步分发调度
Reactor 3: Acceptor 第二步分发调度接收器
Reactor 4: Handler setup 第四步 Handler初始化
Reactor 5: Request handling 第五步请求处理
Per-State Handlers 基于GoF状态对象模式对Handler类的一个优化实现，不需要再进行状态的判断


import java.io.IOException;
import java.net.InetSocketAddress;
import java.nio.channels.SelectionKey;
import java.nio.channels.Selector;
import java.nio.channels.ServerSocketChannel;
import java.nio.channels.SocketChannel;
import java.util.Iterator;
import java.util.Set;

public class Reactor implements Runnable{

  public static void main(String[] args) {
    try {
      new Reactor(8080).run();
    } catch (IOException e) {
      throw new RuntimeException(e);
    }
  }


  final Selector selector;
  final ServerSocketChannel serverSocket;
  Reactor(int port) throws IOException {
    selector = Selector.open();
    serverSocket = ServerSocketChannel.open();
    serverSocket.socket().bind(new InetSocketAddress(port));
    serverSocket.configureBlocking(false);
    SelectionKey sk = serverSocket.register(selector, SelectionKey.OP_ACCEPT); //注册accept事件
    sk.attach(new Acceptor()); //调用Acceptor()为回调方法
  }

  public void run() {
    try {
      while (!Thread.interrupted()) {//循环
        selector.select();
        Set selected = selector.selectedKeys();
        Iterator it = selected.iterator();
        while (it.hasNext()){
          //dispatch分发事件
          dispatch((SelectionKey)it.next());
        }
        selected.clear();
      }
    } catch (IOException ex) { /* ... */ }
  }

  void dispatch(SelectionKey k) {
    Runnable r = (Runnable)(k.attachment()); //调用SelectionKey绑定的调用对象
    if (r != null)
      r.run();
  }

  // Acceptor 连接处理类
  class Acceptor implements Runnable { // inner
    public void run() {
      try {
        SocketChannel c = serverSocket.accept();
        if (c != null)
          new Handler(selector, c);
      }
      catch(IOException ex) { /* ... */ }
    }
  }
}


import java.io.IOException;
import java.nio.ByteBuffer;
import java.nio.channels.SelectionKey;
import java.nio.channels.Selector;
import java.nio.channels.SocketChannel;

public class Handler implements Runnable{

    final SocketChannel socket;
    final SelectionKey sk;
    ByteBuffer input = ByteBuffer.allocate(1024);
    ByteBuffer output = ByteBuffer.allocate(1024);
    static final int READING = 0, SENDING = 1;
    int state = READING;

    Handler(Selector sel, SocketChannel c) throws IOException {
        socket = c;
        c.configureBlocking(false);
        // Optionally try first read now
        sk = socket.register(sel, 0);
        sk.attach(this); //将Handler绑定到SelectionKey上
        sk.interestOps(SelectionKey.OP_READ);
        sel.wakeup();
    }
    boolean inputIsComplete() { /* ... */
        return false;
    }
    boolean outputIsComplete() { /* ... */
        return false;
    }
    void process() { /* ... */ }

    /**
     * 这是Handler处理类
     */
    /**/
    @Override
    public void run() {
        try {
            if (state == READING) read();
            else if (state == SENDING) send();
        } catch (IOException ex) {  }
    }

    void read() throws IOException {
        socket.read(input);
        if (inputIsComplete()) {
            process();
            state = SENDING;
            // Normally also do first write now
            sk.interestOps(SelectionKey.OP_WRITE);
        }
    }
    void send() throws IOException {
        socket.write(output);
        if (outputIsComplete()) sk.cancel();
    }

    /**
     * 下面是基于GoF状态对象模式对Handler类的一个优化实现，不需要再进行状态的判断。
     */

    /*
    @Override
    public void run() { // initial state is reader
        try {
            socket.read(input);
        } catch (IOException e) {
            throw new RuntimeException(e);
        }
        if (inputIsComplete()) {
            process();
            sk.attach(new Sender());
            sk.interestOps(SelectionKey.OP_WRITE);
            sk.selector().wakeup();
        }
    }

    class Sender implements Runnable {
        public void run(){ // ...
            try {
                socket.write(output);
            } catch (IOException e) {
                throw new RuntimeException(e);
            }
            if (outputIsComplete()) sk.cancel();
        }
    }

     */
}

Multithreaded Designs 多线程设计

Strategically add threads for scalability 策略性地添加线程以提高可伸缩性
- Mainly applicable to multiprocessors 主要适用于多处理器
Worker Threads 增加工作线程专门处理非IO操作
- Reactors should quickly trigger handlers 反应器线程需要迅速触发处理流程
  - Handler processing slows down Reactor 如果处理过程也就是process()方法产生阻塞会拖慢反应器线程的性能
- Offload non-IO processing to other threads 我们需要把一些非IO操作交给Woker线程来做

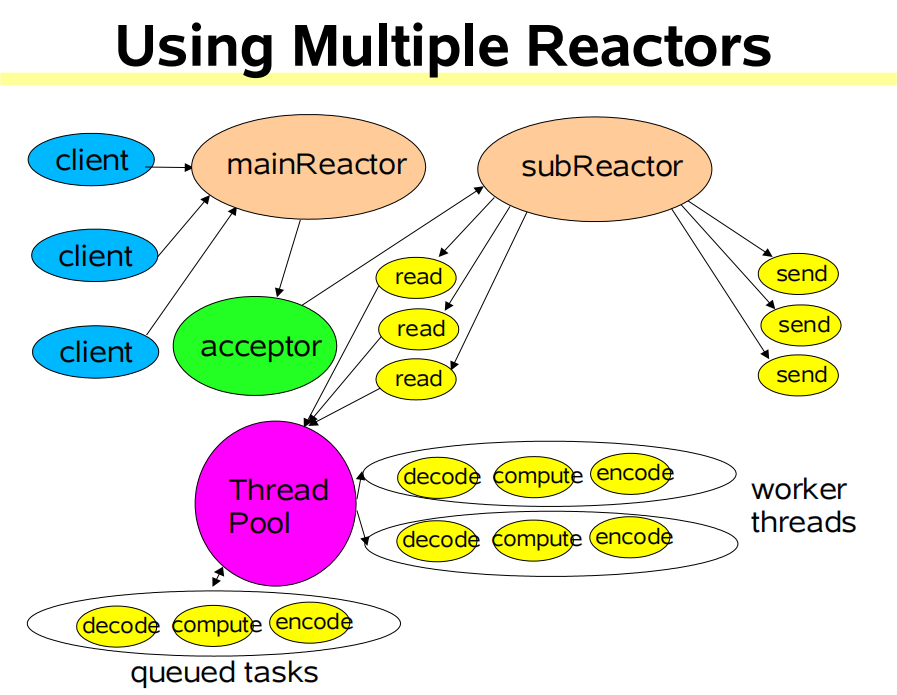

Multiple Reactor Threads 拆分并增加反应器Reactor线程
- Reactor threads can saturate doing IO 在压力较大时可以饱和处理IO操作，提高处理能力
- Distribute load to other reactors 维持多个Reactor线程也可以做负载均衡使用
  - Load-balance to match CPU and IO rates 线程的数量可以根据程序本身是CPU密集型还是IO密集型操作来进行合理的分配

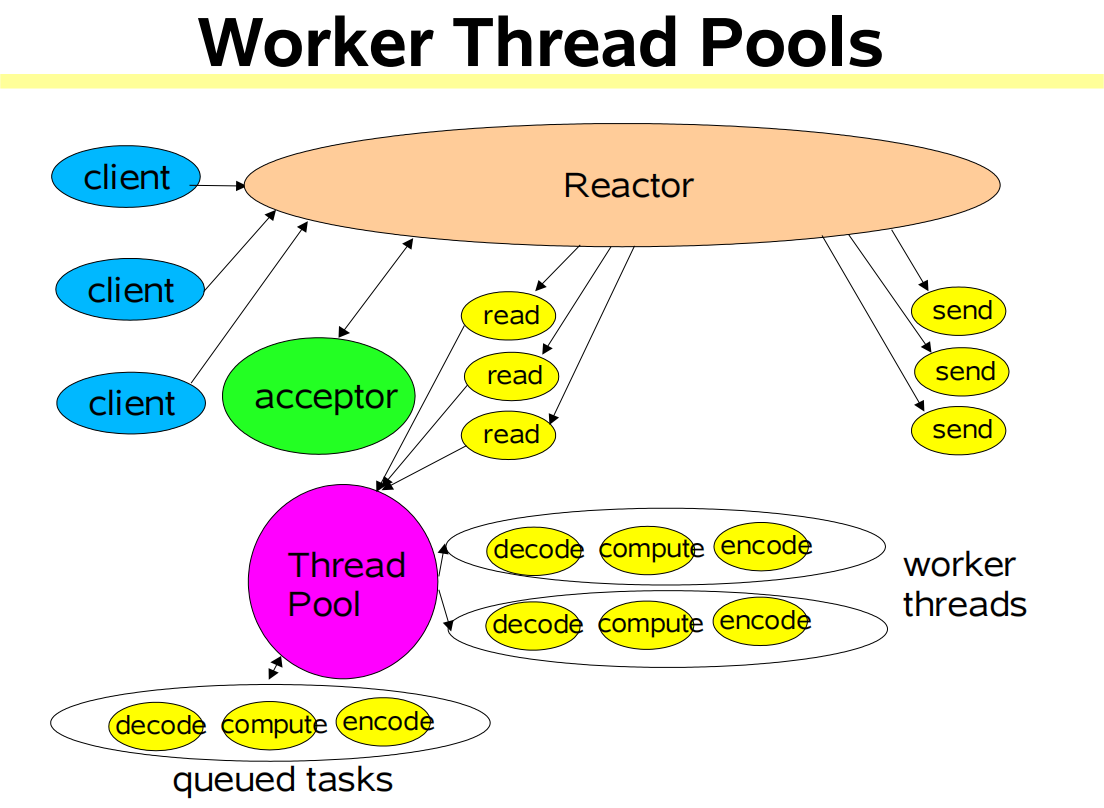

Worker Threads 工作线程

Offload non-IO processing to speed up Reactor thread 通过卸载非IO操作来提升Reactor 线程的处理性能
- Similar to POSA2 Proactor designs 类似与POSA2 中Proactor的设计
Simpler than reworking compute-bound processing into event-driven form 比将非IO操作重新设计为事件驱动的方式更简单
- Should still be pure nonblocking computation 仍然应该是纯粹的非阻塞计算
  - Enough processing to outweigh overhead 足够的处理超过开销
But harder to overlap processing with IO 但是很难将处理与IO重叠
- Best when can first read all input into a buffer 最好能在第一时间将所有输入读入缓冲区（这里我理解的是最好一次性读取缓冲区数据，方便异步非IO操作处理数据）
Use thread pool so can tune and control 可以通过线程池的方式对线程进行调优与控制
- Normally need many fewer threads than clients 通常需要比客户端少得多的线程

Handler with Thread Pool 带有线程池的处理器


import java.io.IOException;
import java.nio.ByteBuffer;
import java.nio.channels.SelectionKey;
import java.nio.channels.Selector;
import java.nio.channels.SocketChannel;
import java.util.concurrent.ArrayBlockingQueue;
import java.util.concurrent.ThreadPoolExecutor;
import java.util.concurrent.TimeUnit;

public class Handler implements Runnable{

    private static final int CORE_POOL_SIZE = 5;
    private static final int MAX_POOL_SIZE = 10;
    private static final int QUEUE_CAPACITY = 100;
    private static final Long KEEP_ALIVE_TIME = 1L;


    // uses util.concurrent thread pool
    static ThreadPoolExecutor pool = new ThreadPoolExecutor(
            CORE_POOL_SIZE,
            MAX_POOL_SIZE,
            KEEP_ALIVE_TIME,
            TimeUnit.SECONDS,
            new ArrayBlockingQueue<>(QUEUE_CAPACITY),
            new ThreadPoolExecutor.CallerRunsPolicy());

    static final int PROCESSING = 3;


    final SocketChannel socket;
    final SelectionKey sk;
    ByteBuffer input = ByteBuffer.allocate(1024);
    ByteBuffer output = ByteBuffer.allocate(1024);
    static final int READING = 0, SENDING = 1;
    int state = READING;

    Handler(Selector sel, SocketChannel c) throws IOException {
        socket = c;
        c.configureBlocking(false);
        // Optionally try first read now
        sk = socket.register(sel, 0);
        sk.attach(this); //将Handler绑定到SelectionKey上
        sk.interestOps(SelectionKey.OP_READ);
        sel.wakeup();
    }
    boolean inputIsComplete() { /* ... */
        return false;
    }
    boolean outputIsComplete() { /* ... */
        return false;
    }
    void process() { /* ... */ }

    /**
     * 这是Handler处理类
     */
    /**/
    @Override
    public void run() {
        try {
            if (state == READING) read();
            else if (state == SENDING) send();
        } catch (IOException ex) {  }
    }

    synchronized void read() throws IOException {
        socket.read(input);
        if (inputIsComplete()) {
//            process();
//            state = SENDING;
//            // Normally also do first write now
//            sk.interestOps(SelectionKey.OP_WRITE);

            state = PROCESSING;
            pool.execute(new Processer());
        }
    }
    void send() throws IOException {
        socket.write(output);
        if (outputIsComplete()) sk.cancel();
    }

    synchronized void processAndHandOff() {
        process();
        state = SENDING; // or rebind attachment
        sk.interestOps(SelectionKey.OP_WRITE);
    }

    class Processer implements Runnable {
        public void run() { processAndHandOff(); }
    }

}

Coordinating Tasks 协调任务

当你把非IO操作放到线程池中运行时，你需要注意以下几点问题

Handoffs 交接
- Each task enables, triggers, or calls next one Usually fastest but can be brittle 任务之间的协调与控制，每个任务的启动、执行、传递的速度是很快的，不容易协调与控制
Callbacks to per-handler dispatcher 每个hander中dispatch的回调与状态控制
- Sets state, attachment, etc A variant of GoF Mediator pattern 设置状态、附件等。GoF中介模式的一种变体
Queues 不同线程之间缓冲区的线程安全问题
- For example, passing buffers across stages 例如，跨阶段传递缓冲区
Futures
- When each task produces a result Coordination layered on top of join or wait/notify 需要任务返回结果时，任务线程等待和唤醒状态间的切换

Using PooledExecutor 可以使用PooledExecutor线程池框架解决上面的问题

A tunable worker thread pool 这是一个可控的任务线程池
Main method execute(Runnable r) 主函数采用execute(Runnable r)
Controls for: 它具备以下功能，可以很好的对池中的线程与任务进行控制与管理
- The kind of task queue (any Channel) 任务队列的类型(任何通道)
- Maximum number of threads 最大线程数
- Minimum number of threads 最小线程数
- “Warm” versus on-demand threads “预热"以应对随机应变的线程按需要判断线程的活动状态，及时处理空闲线程
- Keep-alive interval until idle threads die 保持活动间隔，直到空闲线程死亡
  - to be later replaced by new ones if necessary 如有必要，以后再用新的代替
- Saturation policy 饱和策略当执行任务数量超过线程池中线程数量时，有一系列的阻塞、限流的策略
  - block, drop, producer-runs, etc 阻塞,抛弃,producer-runs等

Multiple Reactor Threads 基于多个反应器的多线程模式

Using Reactor Pools 使用反应器线程池
- Use to match CPU and IO rates 一方面根据实际情况用于匹配调节CPU处理与IO读写的效率，提高系统资源的利用率
- Static or dynamic construction 另一方面在静态或动态构造中
  - Each with own Selector, Thread, dispatch loop 每个反应器线程都包含对应的Selector,Thread,dispatchloop
- Main acceptor distributes to other reactors 下面是一个简单的代码示例与示意图（Netty就是基于这个模式设计的，一个处理Accpet连接的mainReactor线程，多个处理IO事件的subReactor线程）


Selector[] selectors; // Selector集合，每一个Selector 对应一个subReactor线程
//mainReactor线程
class Acceptor { // ...
    public synchronized void run() {
        //...
        Socket connection = serverSocket.accept();
        if (connection != null)
          new Handler(selectors[next], connection);
        if (++next == selectors.length)
            next = 0;
    }
}

Using other java.nio features 在服务的设计当中，我们还需要注意与java.nio包特性的结合

Multiple Selectors per Reactor 每个反应器有多个选择器
- To bind different handlers to different IO events May need careful synchronization to coordinate 要将不同的处理程序绑定到不同的IO事件可能需要细致的同步协调编码
File transfer 文件传输
- Automated file-to-net or net-to-file copying 自动文件到网络或网络到文件复制
Memory-mapped files 内存映射文件的方式
- Access files via buffers 通过缓存区访问文件
Direct buffers 直接缓冲区的方式
- Can sometimes achieve zero-copy transfer But have setup and finalization overhead Best for applications with long-lived connections 在合适的情况下可以使用零拷贝传输，但同时这会带来初始化与内存释放的问题（需要池化与主动释放）

Connection-Based Extensions 基于连接的扩展

Instead of a single service request 并不是单个服务请求
- Client connects 客户端连接
- Client sends a series of messages/requests 客户端发送一系列的消息/请求
- Client disconnects 客户端断开连接
Examples 样例
- Databases and Transaction monitors 数据库和事务监视器
- Multi-participant games, chat, etc 多人游戏、聊天等
Can extend basic network service patterns 可以扩展基本的网络服务模式
- Handle many relatively long-lived clients 处理许多寿命相对较长的客户机
- Track client and session state (including drops) 跟踪客户端和会话状态(包括丢弃)
- Distribute services across multiple hosts 跨多个主机分发服务

API Walkthrough

Buffer
ByteBuffer
- (CharBuffer, LongBuffer, etc not shown.)
Channel
SelectableChannel
SocketChannel
ServerSocketChannel
FileChannel
Selector
SelectionKey

Buffer


abstract class Buffer {
  int capacity();
  int position();
  Buffer position(int newPosition);
  int limit();
  Buffer limit(int newLimit);
  Buffer mark();
  Buffer reset();
  Buffer clear();
  Buffer flip();
  Buffer rewind();
  int remaining();
  boolean hasRemaining();
  boolean isReadOnly();
}

ByteBuffer


abstract class ByteBuffer extends Buffer {
    static ByteBuffer allocateDirect(int capacity);

    static ByteBuffer allocate(int capacity);

    static ByteBuffer wrap(byte[] src, int offset, int len);

    static ByteBuffer wrap(byte[] src);

    boolean isDirect();

    ByteOrder order();

    ByteBuffer order(ByteOrder bo);

    ByteBuffer slice();

    ByteBuffer duplicate();

    ByteBuffer compact();

    ByteBuffer asReadOnlyBuffer();

    byte get();

    byte get(int index);

    ByteBuffer get(byte[] dst, int offset, int length);

    ByteBuffer get(byte[] dst);

    ByteBuffer put(byte b);

    ByteBuffer put(int index, byte b);

    ByteBuffer put(byte[] src, int offset, int length);

    ByteBuffer put(ByteBuffer src);

    ByteBuffer put(byte[] src);

    char getChar();

    char getChar(int index);

    ByteBuffer putChar(char value);

    ByteBuffer putChar(int index, char value);

    CharBuffer asCharBuffer();

    short getShort();

    short getShort(int index);

    ByteBuffer putShort(short value);

    ByteBuffer putShort(int index, short value);

    ShortBuffer asShortBuffer();

    int getInt();

    int getInt(int index);

    ByteBuffer putInt(int value);

    ByteBuffer putInt(int index, int value);

    IntBuffer asIntBuffer();

    long getLong();

    long getLong(int index);

    ByteBuffer putLong(long value);

    ByteBuffer putLong(int index, long value);

    LongBuffer asLongBuffer();

    float getFloat();

    float getFloat(int index);

    ByteBuffer putFloat(float value);

    ByteBuffer putFloat(int index, float value);

    FloatBuffer asFloatBuffer();

    double getDouble();

    double getDouble(int index);

    ByteBuffer putDouble(double value);

    ByteBuffer putDouble(int index, double value);

    DoubleBuffer asDoubleBuffer();
}

Channel


interface Channel {
 boolean isOpen();
 void close() throws IOException;
}
interface ReadableByteChannel extends Channel {
 int read(ByteBuffer dst) throws IOException;
}
interface WritableByteChannel extends Channel {
 int write(ByteBuffer src) throws IOException;
}
interface ScatteringByteChannel extends ReadableByteChannel {
 int read(ByteBuffer[] dsts, int offset, int length)
 throws IOException;
 int read(ByteBuffer[] dsts) throws IOException;
}
interface GatheringByteChannel extends WritableByteChannel {
 int write(ByteBuffer[] srcs, int offset, int length)
 throws IOException;
 int write(ByteBuffer[] srcs) throws IOException;
}

SelectableChannel


abstract class SelectableChannel implements Channel {
 int validOps();
 boolean isRegistered();
 SelectionKey keyFor(Selector sel);
 SelectionKey register(Selector sel, int ops)
 throws ClosedChannelException;
 void configureBlocking(boolean block)
 throws IOException;
 boolean isBlocking();
 Object blockingLock();
}

SocketChannel


abstract class SocketChannel implements ByteChannel{
 static SocketChannel open() throws IOException;
 Socket socket();
 int validOps();
 boolean isConnected();
 boolean isConnectionPending();
 boolean isInputOpen();
 boolean isOutputOpen();
 boolean connect(SocketAddress remote) throws IOException;
 boolean finishConnect() throws IOException;
 void shutdownInput() throws IOException;
 void shutdownOutput() throws IOException;
 int read(ByteBuffer dst) throws IOException;
 int read(ByteBuffer[] dsts, int offset, int length)
 throws IOException;
 int read(ByteBuffer[] dsts) throws IOException;
 int write(ByteBuffer src) throws IOException;
 int write(ByteBuffer[] srcs, int offset, int length)
 throws IOException;
 int write(ByteBuffer[] srcs) throws IOException;
}

ServerSocketChannel


abstract class ServerSocketChannel extends SocketChannel {
 static ServerSocketChannel open() throws IOException;
 int validOps();
 ServerSocket socket();
 SocketChannel accept() throws IOException;
}

FileChannel


abstract class FileChannel implements ... {
 int read(ByteBuffer dst);
 int read(ByteBuffer dst, long position);
 int read(ByteBuffer[] dsts, int offset, int length);
 int read(ByteBuffer[] dsts);
 int write(ByteBuffer src);
 int write(ByteBuffer src, long position);
 int write(ByteBuffer[] srcs, int offset, int length);
 int write(ByteBuffer[] srcs);
 long position();
 void position(long newPosition);
 long size();
 void truncate(long size);
 void force(boolean flushMetaDataToo);
 int transferTo(long position, int count,
 WritableByteChannel dst);
 int transferFrom(ReadableByteChannel src,
 long position, int count);
 FileLock lock(long position, long size, boolean shared);
 FileLock lock();
 FileLock tryLock(long pos, long size, boolean shared);
 FileLock tryLock();
 static final int MAP_RO, MAP_RW, MAP_COW;
 MappedByteBuffer map(int mode, long position, int size);
}

Selector


abstract class Selector {
 static Selector open() throws IOException;
 Set keys();
 Set selectedKeys();
 int selectNow() throws IOException;
 int select(long timeout) throws IOException;
 int select() throws IOException;
 void wakeup();
 void close() throws IOException;
}

SelectionKey


abstract class SelectionKey {
 static final int OP_READ, OP_WRITE,
 OP_CONNECT, OP_ACCEPT;
 SelectableChannel channel();
 Selector selector();
 boolean isValid();
 void cancel();
 int interestOps();
 void interestOps(int ops);
 int readyOps();
 boolean isReadable();
 boolean isWritable();
 boolean isConnectable();
 boolean isAcceptable();
 Object attach(Object ob);
 Object attachment();
}
